DA 45

Smart and fast actuator for industrial automation

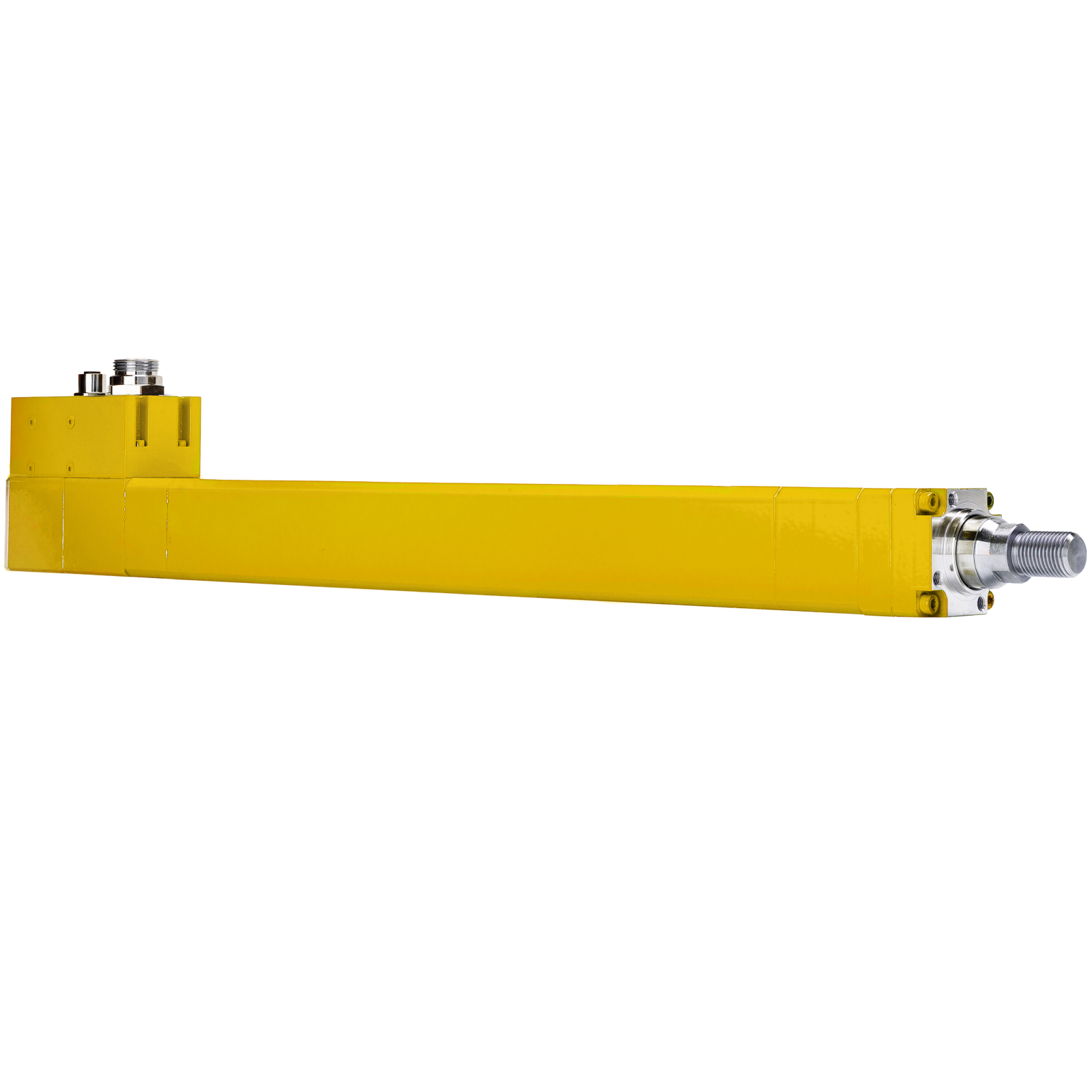

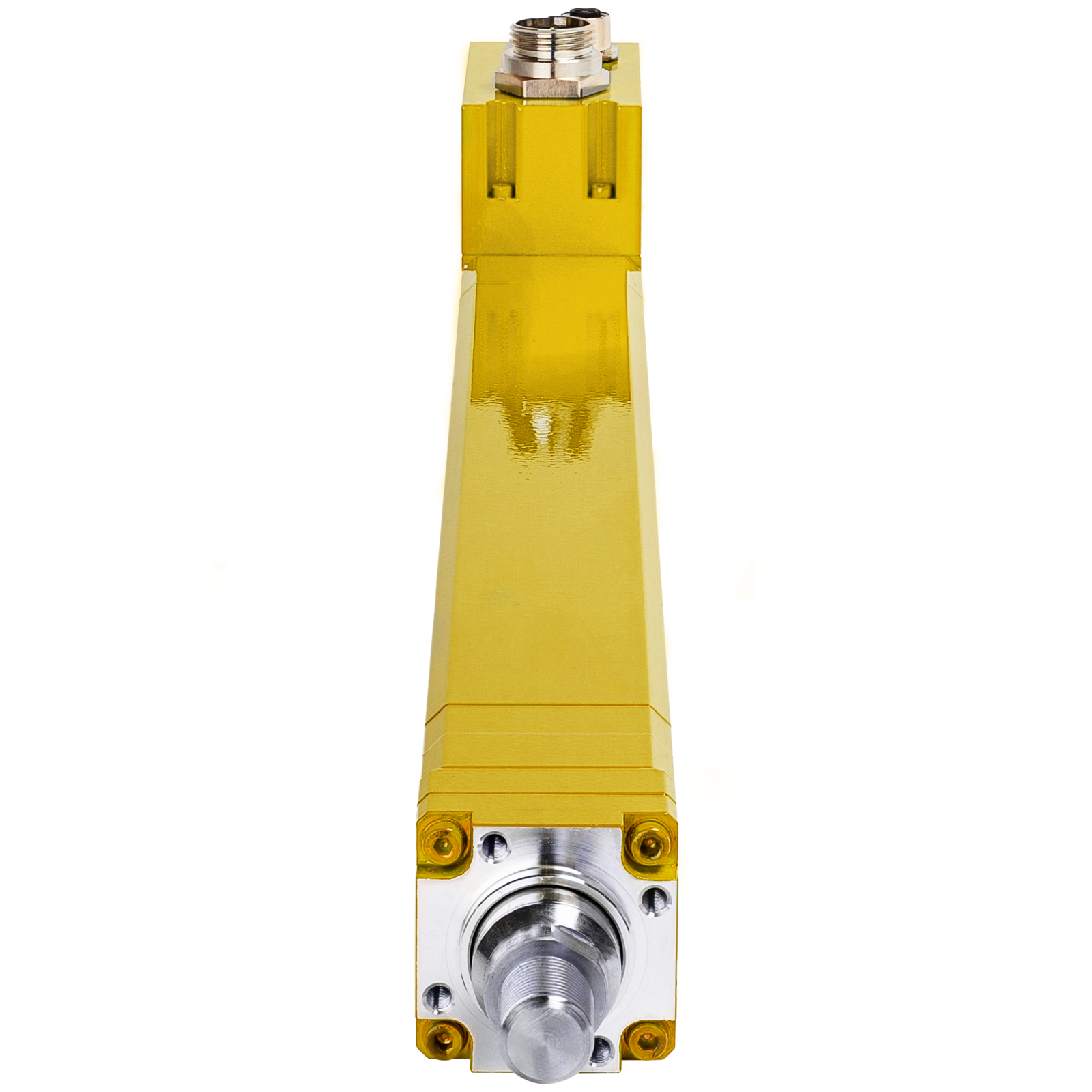

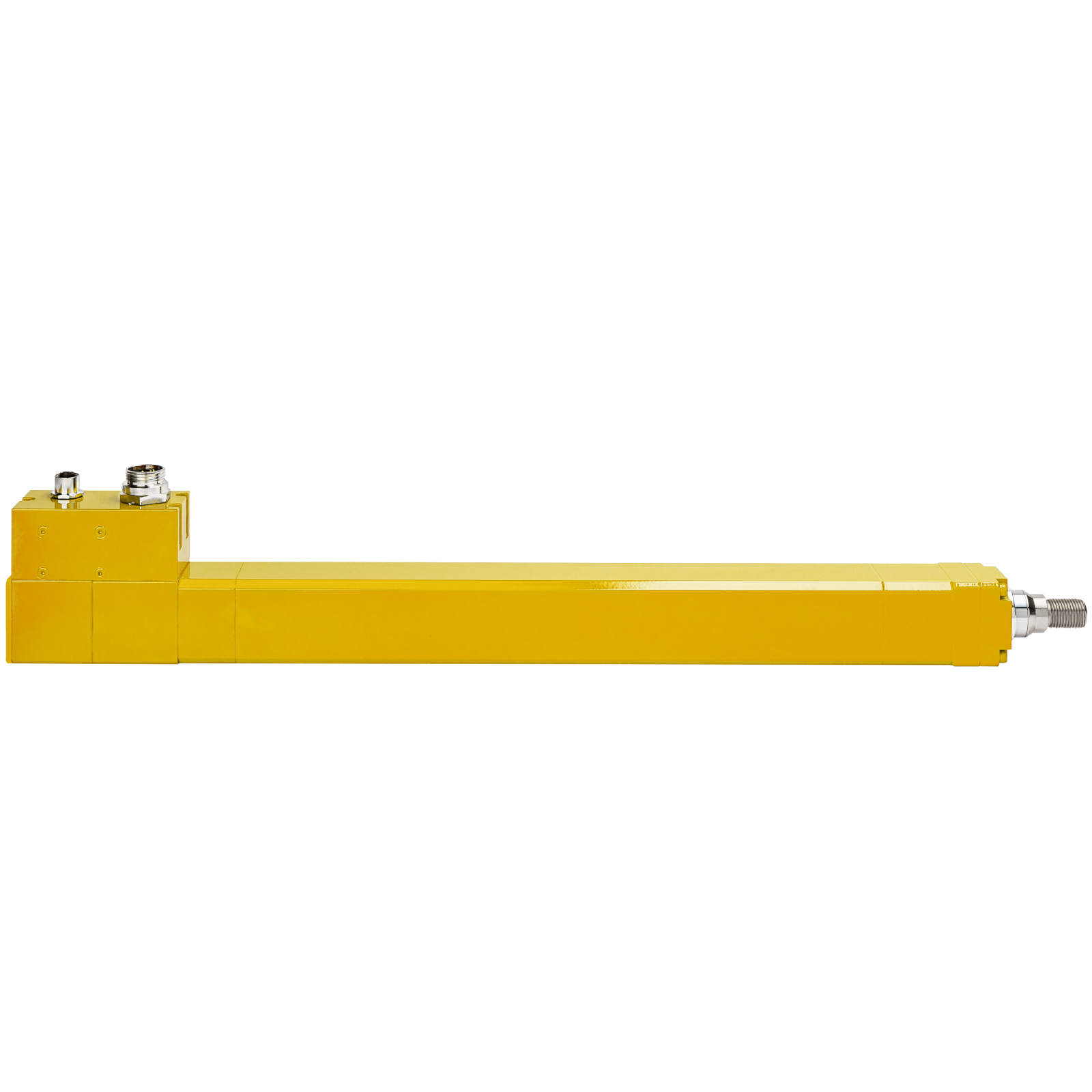

DA45 is a ball-screw based positioning actuator with a built-in compact servodrive. With the compact housing of 45x45 section and overall weight of 3.2 kg, it is designed to provide fast and accurate motion.

Technical specifications Options

Parameter	Value
Rated force	230 N (at max 415 mm/s)
Peak force	500 N (at 0 mm/s)
Max. speed	500 mm/s
Stroke	300; 400 mm
Screw lead	5 mm/rev
Positioning accuracy	0.1 mm
Repeatability	±0.0045 mm
Lifetime	14500 km at 300N load
Base dimensions	45x45mm (cross section)
Base weight	3.2 kg
Protection level	IP65
Ambience temperature	0 to +50°C
Maintenance	Lifetime lubrication

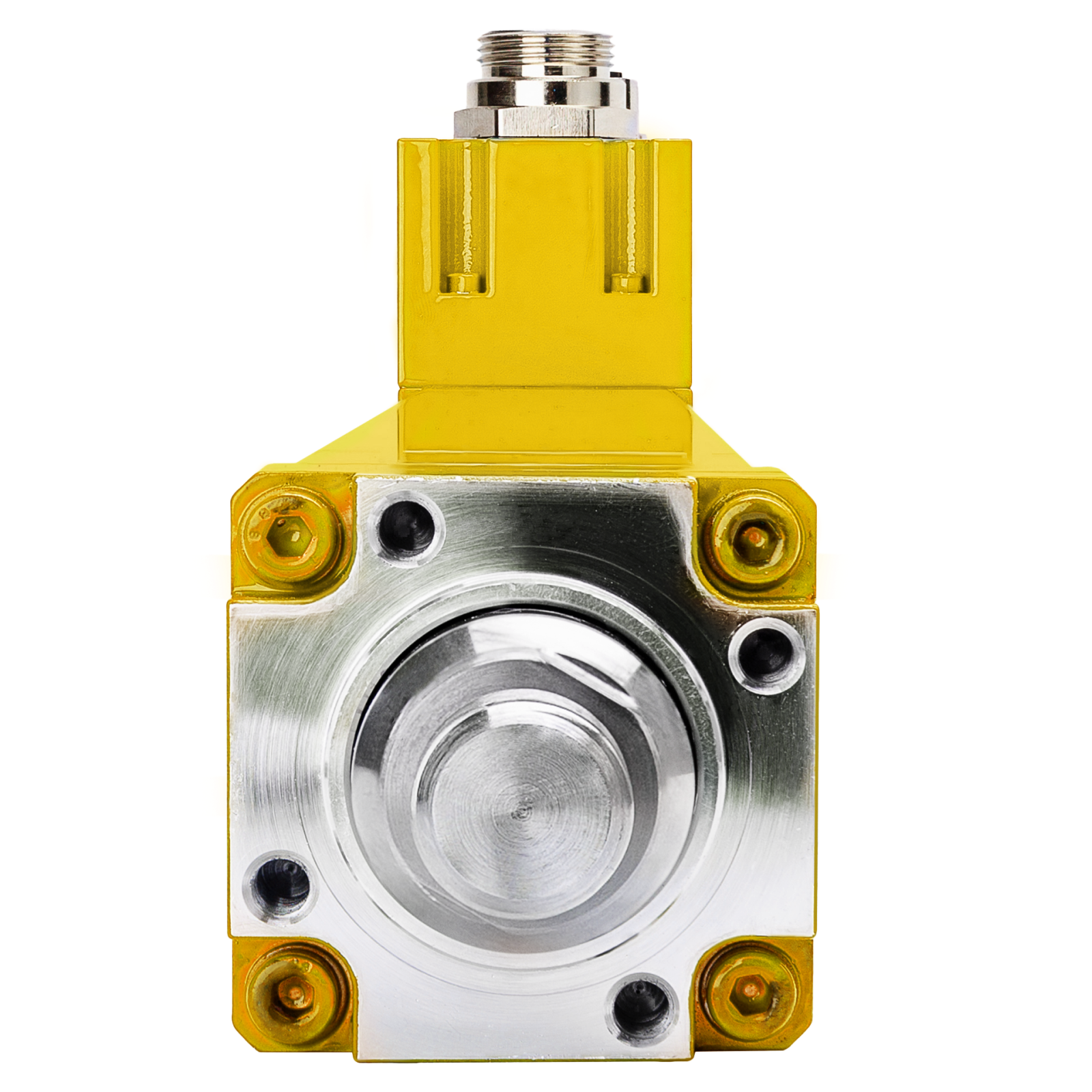

Mounting	front flange
Feedback sensor	absolute encoder
Voltage	24-72 VDC

Electric brake

For additional control over the process.

Modular design

Core element of DA45 is a motor module with embedded servo drive. It is possible to attach it to other motion mechanisms depending on the preferred design and application.
